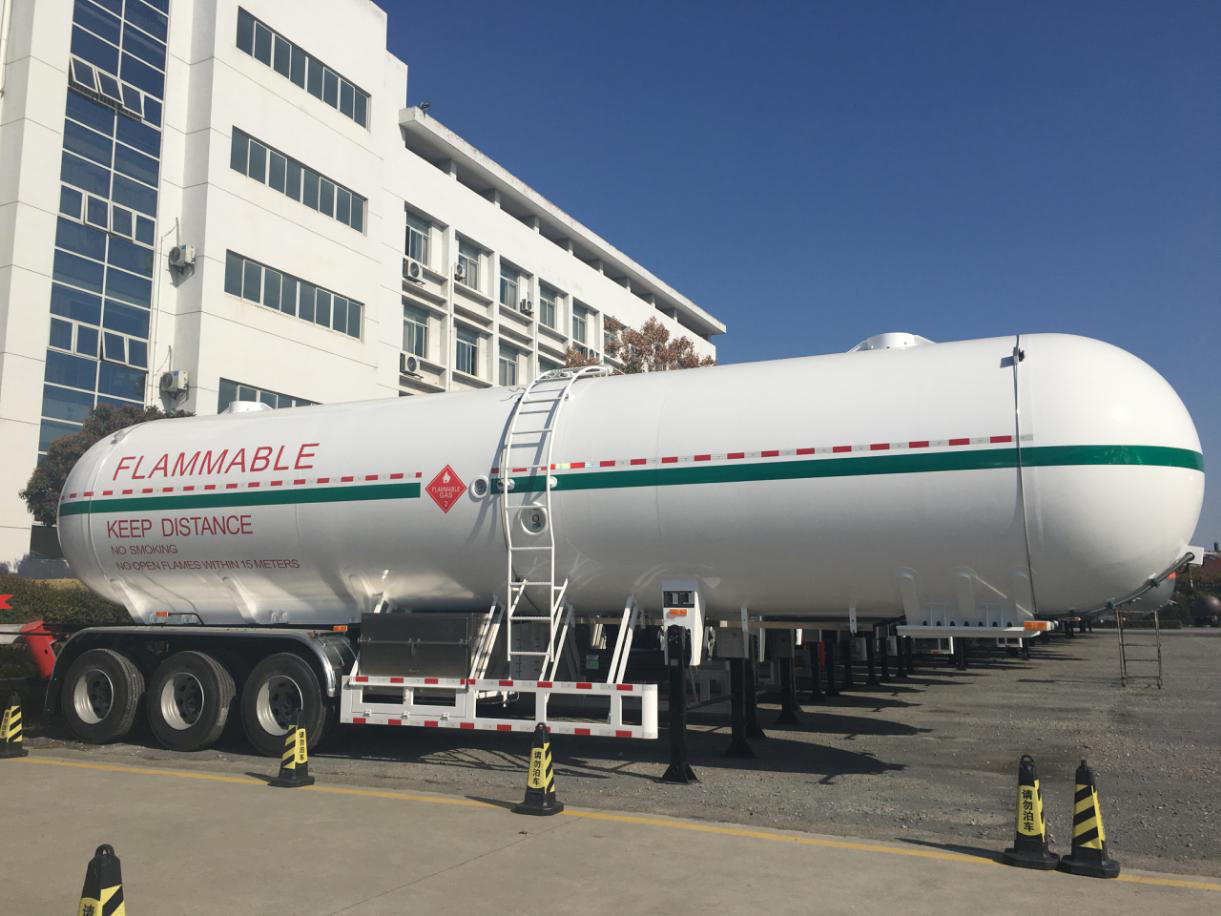

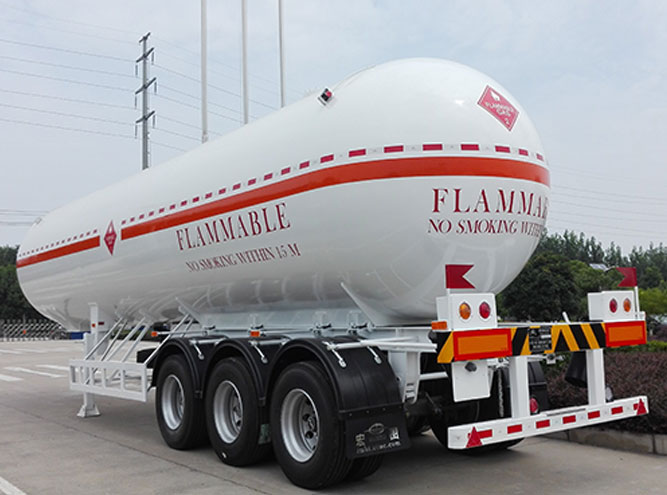

56.1m³LPG Semitrailer（LPG Vehicle）

Item项目	Name名称	Specification规格	Quantity数量(per Semitrailer)
Tank罐体	Pressure relief valve安全阀	A8436G	2 pcs
	Level gauge液位计	See the drawing	1 pcs
	Drain 排污口	NO 无
	Manway人孔	DN460
	Steel baffle 防浪板	Carbon Steel baffle铁质防浪板	6 pcs
Filling & Discharge System 装卸系统	Control method 控制方式	Mechanical 机械式
Filling & Discharge System 装卸系统	Valve box 阀门箱	Stainless steel, on right side of the trailer不锈钢，位于罐体右侧	1 piece
Other Fittings其它附件	Tool valve 工具箱	Stainless steel, on left side of the trailer不锈钢，位于罐体左侧	1 piece
	Mudguard 挡泥板	Aluminum mudguard 铝合金挡泥板	6 pcs
	Ladder 梯子	YES 有
	Level gauge armrest 液位计扶手	NO 无
	Water tank or hose box 水箱或软管箱	NO 无
	Fire extinguisher Box 灭火瓶	Big box, with 8kg fire extinguisher	2 pcs
	King pin 牵引销	JOST 2〞king pin	1 pcs
	Distance from kingpin assy to ground 牵引销鞍座蓝底高度	1360mm, to be confirmed in the contract
	Landing gears 支腿	JOST separate winding, model A400
Running Gear行走机构	Suspension 悬挂	Chinese Spring suspension, 10 pcs of leafs国产弹簧悬挂, 10片簧	10 pcs
	Spare wheel carrier备胎架	YES 有	2 pcs
	ABS	Wabco brand, 4S/2M，24V
	Rim 轮毂	Carton steel rim, 8.25×22.5 铁质8.25×22.5	14 pcs (including 2 spare tires)
	Axle 车轴	FUWA brand, 13ton 富华轴13吨	3 pcs
	Tire轮胎	Bridgestone, tubeless, 11R22.5 普利司通真空胎11R22.5	14 PCS (Including 2 spare tires)
	Light 灯具Voltage for the whole trailer整车电压	LED lamps; LED灯24V voltage for the whole trailer整车24V电压	1 set
	Side protection 侧护栏	Carbon steel 铁质侧护栏
	Brake 制动器	Drum type 鼓式
	Parking brake 制动	Pneumatically operated 气动操作
	Earthing 接地	Electrostatic strip静电接地
Surface表面	Reflective stickers 反光色带	3M reflective stickers
Surface表面	Painting & logo 用户要求的喷涂字样和图案	Yes 有	To be confirmed
Special Requirement特殊要求	1. The end of (3) brass ACME hose adaptor covers must be 50mm away from the inside face of valve box doors. The valve box door must be opened “swing up” automatic actuated by pneumatic cylinders. All LPG pipelines must have rigid supports with the supports anchored on valve box flooring. 接头离阀门箱内部门至少有50mm的距离。阀门箱向上自动开启。阀门箱内三个管路应设置支撑，且该支撑应与阀门箱底板处的支撑件相连。 2. Four (4) sets of vent valves must have their dip tubes set at 50%, 75%, 85% and 90%. The vent lines must be clean, no restriction and tested that it functions Satisfactory prior shipping to Phils. 四个测满口分别用于测量罐内液体的50%，75%，85%和90%液位。发货前，应确保上述测满口无堵塞。 3. Two (2) sets of emergency shut-off levers must be provided. First (1^st) set located on rear right side, the second (2^nd) set located on left side landing gear. 设置两处远控装置，一个位于行走机构右侧，一个位于左侧支腿架。 4. The (3) LPG pipelines butt-weld joints must be radiographic test (RT) instead of Magnetic Particle Test (MT). 进液、出液、气相管三根管道对接焊缝必须做RT，而不是MT。 5. The welded seams of both hemispherical ends must be “as-welded” prior to RT to get a good image during RT. Flush grinding of welds can be done after RT. 封头焊缝先拍片后打磨，必须提供清晰的封头RT底片。 6. Spares for 5 pcs of side lights with bulbs, 1 one set of tail lights with bulbs and 4 pcs of springs (for opening the valve box). 每台备用侧标志灯5个、尾灯4个、气弹簧4个。 7. Use temporary PTEF manhole gasket when the hydrotest is done at factory; pack new metallic gaskets delivered with semitrailer. 厂内水压试验时，使用临时聚四氟乙烯垫片；新金属缠绕垫片包装好，随车发走。 8. All new gaskets shall be metallic, spiral wound; graphite filled SS Type 304 x 300 lbs. Rating 所有新垫片都是金属缠绕垫片；石墨填充，不锈钢 304 x 300 lbs. Rating。 9. The liquid and vapor pipelines shall be provided with separate bleeder valves and a vent stainless line for overhead venting during the connection and disconnection of hoses. The overhead vent lines shall be installed along the rails of ladders to the top of tank. 装卸系统尾部的三个放散口汇集到一根不锈钢管中。该不锈钢管沿着罐体和梯子上升到罐体上部，用于排放管路中的残余气体。

Design Code/设计标准:	GB 150 (Chinese standard)
Capacity/容积	56.1m³
Liquid/介质	LPG
Liquid Density/介质密度	0.545ton/m³（15 ℃）
Curb Weight/设备质量	15500kg
Filling Weight/充装质量	25990kg
Total Weight/总质量	41490kg
Design Pressure/设计压力	1.72MPA
Maximum allowable working Pressure/工作压力	1.72MPA
Design Temperature/设计温度	-20~50℃
Hydrotest Pressure/水压试验压力	2.24MPA
Overall Dimension/外形尺寸	1300025004050 (mm)
Shell Material/筒体材料	Q370R（Normalized）
Shell Thickness/筒体厚度	12 (0~+0.6)
Head Material/封头材料	Q370R（Normalized）
Head Thickness/封头厚度	8mm
Head Type/封头类型	Spherical heads
Remarks	For more details, pls refer to the technical drawings. 更多细节，详见图纸。
